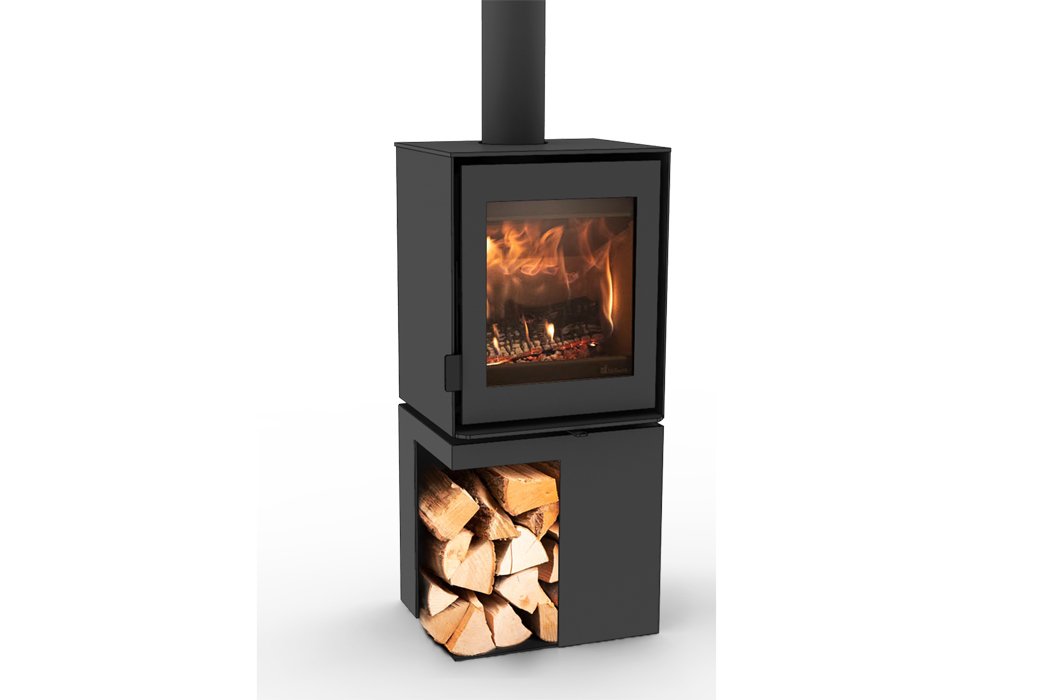

The Modivar 5, Store Corner has a practical wood compartment with an opening on the left hand side for storing logs. One unique air slide gives you complete control and enjoy great flames thanks to the large glass window. The Modivar 5 is also available with optional Plateau or Store Front wood compartments.
Specifications:
|
|
| Brand |
Dik Geurts |
| Series |
Modivar |
| Category |
Wood stoves |
| EcoDesign Ready |
✓ |
| Energy efficiency class |
A+ |
| Product fiche |
Click for PDF-file |
| Model |
Freestanding |
| Fire view |
Front |
| Shape |
Vertical |
| Fuel |
Wood |
| Combustion system |
Combustion air from outside, Combustion air from living area |
| Suitable for passive houses |
✓ |
| Glass window |
Standard glass |
| Door type |
Hinged door |
| Control |
Manual control |
| DG Smart Assist |
✖ |
| S-Thermatik NEO |
✖ |
| Colours |
Dark anthracite |
| Material |
Steel |
| Interior |
Vermiculite natural |
| Output net min. (kW) |
4.0 |
| Output net max. (kW) |
7.0 |
| Nominal heat output |
4.9 |
| Max. log length (cm) |
35 |
| Efficiency (%)Â |
82.0 |
| CO emission (%-13% O2) |
<0.1 |
| Particulate Matter (mg/Nm3-13% O2) |
<30 |
| OGC/CxHy (mg/Nm3-13% O2) |
<70 |
| NOx emission (mg/Nm3-13% O2) |
<160 |
| Built-in depth (mm) |
368 |
| Fire view width (mm)Â |
310 |
| Fire view height (mm)Â |
355 |
| Weight (kg)Â |
105 |
| Flue |
Top, Rear |
| Flue Ø (mm) |
125/130 |
| External air connection |
Rear, Base |
| Convection connection |
✖ |
| 230V necessary |
✖ |
| Approvals |
EN13240, Flamme Verte, BlmSchV, Defra, EcoDesign, Hetas |
| Declaration of performance |
Click for PDF-file |
| Dimensions |
Click for PDF-file |
| Product manual |
Click for PDF-file |
