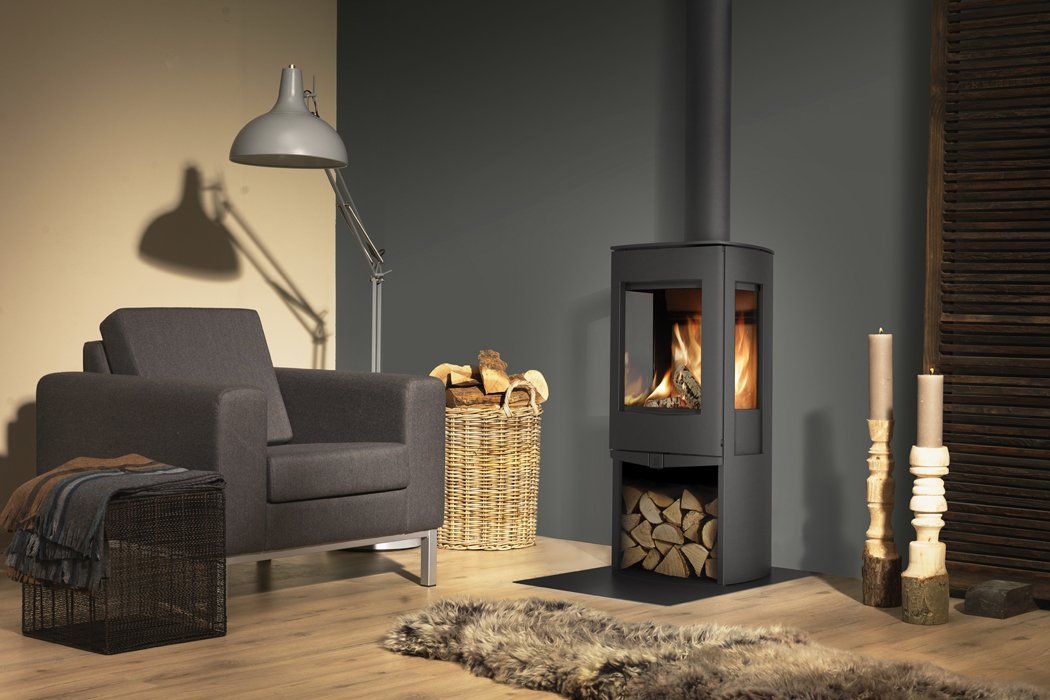

Freestanding modern wood stove
The freestanding modern wood stove is fitted with side panes of heat reflecting glass (infrared) which stay cleaner during operation. The fire can be optimally controlled by a convenient air slide.
Specifications:
|
|
| Brand |
Dik Geurts |
| Series |
Folke |
| Category |
Wood stoves |
| EcoDesign Ready |
✓ |
| Energy efficiency class |
A |
| Product fiche |
Click for PDF-file |
| Model |
Freestanding |
| Fire view |
3-sided |
| Shape |
Vertical |
| Fuel |
Wood |
| Combustion system |
Combustion air from outside, Combustion air from living area |
| Suitable for passive houses |
✓ |
| Glass window |
Standard glass, Infrared glass |
| Door type |
Hinged door |
| Control |
Manual control, Smartphone/tablet, Automatic control |
| DG Smart Assist |
Optional |
| S-Thermatik NEO |
✖ |
| Colours |
Dark anthracite |
| Material |
Steel |
| Interior |
Vermiculite natural |
| Output net min. (kW) |
4.0 |
| Output net max. (kW) |
8.0 |
| Nominal heat output |
7.3 |
| Max. log length (cm) |
35 |
| Efficiency (%)Â |
77.3 |
| CO emission (%-13% O2) |
<0.1 |
| Particulate Matter (mg/Nm3-13% O2) |
<30 |
| OGC/CxHy (mg/Nm3-13% O2) |
<70 |
| NOx emission (mg/Nm3-13% O2) |
<160 |
| Built-in depth (mm) |
410 |
| Fire view width (mm)Â |
320 |
| Fire view height (mm)Â |
396 |
| Weight (kg)Â |
125 |
| Flue |
Top, Rear |
| Flue Ø (mm) |
150 |
| External air connection |
Base |
| Convection connection |
✖ |
| 230V necessary |
✖ |
| Approvals |
EN13240, Flamme Verte, BlmSchV, EcoDesign |
| Declaration of performance |
Click for PDF-file |
| Dimensions |
Click for PDF-file |
| Product manual |
Click for PDF-file |
